| Square Footage | Furnace BTU |
|---|---|
| 1,000-1,200 sq. ft. Home | 40,000 - 60,000 BTU |
| 1,200-1,500 sq. ft. Home | 60,000 BTU |
| 1,500-1,800 sq. ft. Home | 60,000 - 80,000 BTU |
| 1,800-2,500 sq. ft. Home | 80,000 - 100,000 BTU |
| 2,500-3,500 sq. ft. Home | 100,000 to 120,000 BTU |

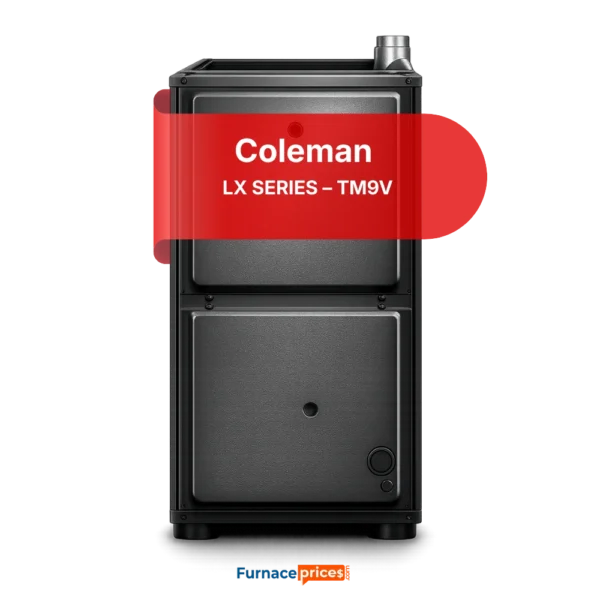

The Coleman LX Series TM9V is a 96% AFUE two-stage gas furnace featuring a variable-speed ECM blower for enhanced comfort, quieter operation, and improved energy efficiency. Designed for homeowners who want smoother temperature control and better humidity management, the TM9V stands at the premium end of the LX Series lineup.
| Feature | Details |
|---|---|
| AFUE Rating | 96% |
| BTU Input | 40,000 – 120,000 |
| BTU Output | 38,000 – 115,000 |
| Heating Type | Two-Stage |
| Blower Motor | Variable-Speed ECM |
| Cabinet Height | 33 inches |
| Fuel Type | Natural Gas (Convertible to LP) |
| Installed Cost | $4,000 – $4,750 |
| Warranty | Lifetime Heat Exchanger, 10-Year Parts |
The average installed price of the Coleman TM9V ranges from $4,000 to $4,750, depending on:
Home size
Ductwork modifications
Removal of existing furnace
Local labor rates
Installation complexity
Unit Price: $2,400 – $3,000
Installation Labor: $1,600 – $1,900
Compared to other 96–97% variable-speed furnaces, the TM9V offers competitive pricing for its performance level.
The TM9V delivers 96% AFUE efficiency, meaning 96% of fuel consumed is converted into usable heat.
Two-stage gas burner adjusts output based on heating demand
Variable-speed ECM motor optimizes airflow
Improves A/C SEER performance when paired with compatible systems
Supports continuous fan operation for better indoor air quality
Electronic Hot Surface Ignition enhances reliability
Condensing design extracts additional heat from exhaust gases
This combination allows the TM9V to provide consistent temperatures with lower energy consumption.
The TM9V is engineered for durability, comfort, and installation flexibility.
Tubular aluminized steel primary heat exchanger
Stainless steel/aluminum secondary heat exchanger
Insulated blower compartment
Built-in self-diagnostics
Communicating control compatibility (4-wire bus connection)
Supports IAQ accessories
Induced combustion system eliminates chimney requirement
Compact 33-inch cabinet
These features improve comfort while extending equipment lifespan.
The Coleman TM9V is one of the quietest furnaces in the LX Series lineup.
Variable-speed blower operates at lower speeds most of the time
Two-stage heating reduces sudden temperature spikes
Insulated cabinet minimizes vibration
Quiet inducer, burner, and blower operation
Compared to single-stage furnaces, the TM9V offers noticeably smoother and quieter performance.
Coleman integrates advanced safety and service-friendly features into the TM9V.
100% shutoff main gas valve
Overheat and blockage safeguards
Condensate blockage protection
Self-diagnostics monitoring
Convertible to LP gas
Upflow, downflow, and horizontal installation options
2-pipe sealed combustion or single-pipe venting
Rotating inducer for easy vent conversion
Removable bottom panel
Movable duct flanges
Self-priming internal condensate trap
Quarter-turn door knobs
Easy-access control wiring
These features simplify installation and maintenance.
| Feature | TM9V | TM9T |
|---|---|---|
| AFUE | 96% | 96% |
| Heating | Two-Stage | Two-Stage |
| Blower | Variable-Speed ECM | 4-Speed PSC |
| Noise | Very Quiet | Quiet |
| Comfort | Premium | Mid-Tier |
👉 TM9V offers superior humidity control and smoother airflow.
| Feature | TM9V | TM9E |
|---|---|---|
| AFUE | 96% | 95% |
| Heating | Two-Stage | Single-Stage |
| Blower | Variable-Speed ECM | 5-Speed ECM |
| Comfort Level | Premium | Standard |
👉 TM9V delivers better comfort consistency and quieter performance.
| Feature | 80% Furnace | TM9V |
|---|---|---|
| AFUE | 80% | 96% |
| ENERGY STAR® | No | Yes |
| Fuel Savings | Standard | Up to 36% |
| Venting | Metal Chimney | PVC (Condensing) |
Upgrading significantly improves efficiency, comfort, and air quality control.
Coleman backs the TM9V with:
Lifetime Limited Heat Exchanger Warranty
10-Year Limited Parts Warranty (registration required)
5-Year Complete Assurance™ pledge
This warranty package is competitive within the premium two-stage furnace category.
✔ Two-stage heating improves comfort
✔ Variable-speed ECM blower enhances airflow
✔ 96% AFUE high efficiency
✔ Very quiet operation
✔ Strong warranty coverage
✔ Compact cabinet design
✖ Higher upfront cost than single-stage models
✖ More complex system requires professional installation
✖ May be oversized for very small homes
The TM9V is ideal for:
Homeowners wanting premium comfort
Medium to large homes
Buyers prioritizing quiet operation
Homes with humidity control needs
Long-term homeowners focused on efficiency
If you want smooth, even heating and improved air quality performance, the TM9V is an excellent fit.
Yes. With 96% AFUE and condensing technology, it qualifies as a high-efficiency gas furnace.
Installed costs typically range between $4,000 and $4,750 depending on installation conditions.
The TM9V is a two-stage furnace with a variable-speed ECM blower.
The TM9V includes a variable-speed ECM motor, providing quieter operation and improved humidity control.
With proper installation and maintenance, it can last 15–20 years or more.
Yes. It is convertible to LP (propane) gas.
The Coleman LX Series TM9V is a premium comfort furnace that balances efficiency, quiet performance, and long-term reliability. Its two-stage heating and variable-speed ECM motor provide smoother airflow and better energy performance compared to entry-level models.
For homeowners seeking improved comfort and long-term efficiency without entering the ultra-high-end category, the TM9V is a strong investment choice.
Installation costs are determined by:
Home square footage and load calculation
Local climate zone
Labour requirements and job complexity
Local contractor pricing
